The floor tiles

In comparison to classic pavers, brick floor tiles are a much flatter variant for a floor design based on the use of brick. This is why they are laid for the most part in mortar, and are used in outdoor as well as indoor contexts. GIMA brick floor tiles are fired at temperature of approximately 1,200°C.

This firing process accounts for the very robust nature of these brick floor tiles and makes them an ideal floor covering, especially in public areas. Many different formats are possible for brick floor tiles. The product range also includes special shapes or step treads and base tiles.

+ Formats + Color variety + References + Technical data

Frequently used

formats

Here you can see an overview of the commonly used formats for brick floor slabs with their corresponding weight, the number on each pallet and the approximate quantity needed per square metre.

Floor tiles
format in mm 		Req. incl. joint/m²Weight kg/
piece		No. per pallet
Classic tiles
600/600/202,716,220
240/115/2034-361,3672
300/145/2022-231,4420
300/145/4022-233,2300
200/200/2023-251,8420
200/200/4023-253,5300
240/240/2516-172,9240
240/240/4016-174,7240
300/300/2510-114,7168
300/300/4010-117,5120
Show more

Scroll right for more information >

Lofd_Toni-Ott_lr
Kupfer-20_20_Toni-Ott_lr
Graphit-20_20_Toni-Ott_lr
Schiefer-20_10_Toni-Ott_lr
Kastanie_Toni-Ott_lr
Granat-FKS-490_52_Toni-Ott_lr
Brasil-NF_Toni-Ott_lr
Sand-bunt_Toni-Ott_lr
Alaska-20_20_Toni-Ott_lr

variety of colors

Brick floor tiles

Every color is developed and tested in our in-house color laboratory before going into production. Then, in production, quality is always Job One - which means that every batch is tested accurately for color-fastness in accordance with our standards.

We manufacture facade and floor products on a project-specific basis. For every building, we consult with you about your desired color until we have achieved a perfect match with your wishes. Let yourself be inspired by our color overview and discover a selection of colors produced previously.

+ Color overview flooring + Color development
Lofd_Toni-Ott_lr
Lofd
Siena
Kupfer-20_20_Toni-Ott_lr
Kupfer
Graphit-20_20_Toni-Ott_lr

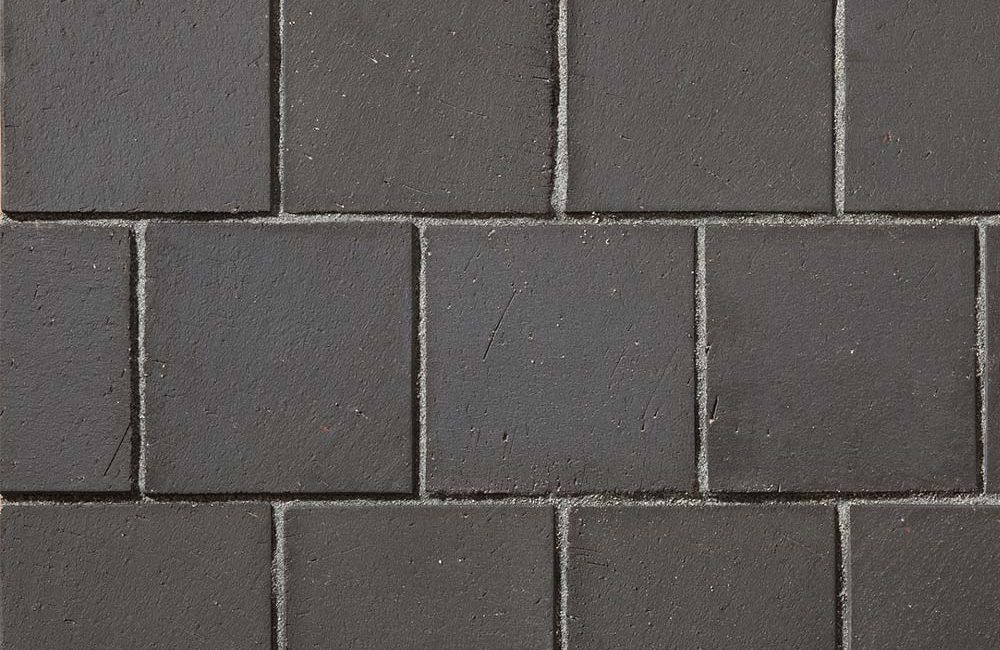

Graphit
Schiefer-20_10_Toni-Ott_lr
Schiefer
Kastanie_Toni-Ott_lr
Kastanie
Granat-FKS-490_52_Toni-Ott_lr
Granat FKS
Brasil-NF_Toni-Ott_lr
Brasil
Sand-bunt_Toni-Ott_lr
Sand colorful
Alaska-20_20_Toni-Ott_lr
Alaska

Impressive

references

Geistlich Areal, Schlieren | Graber Pulver, CH-Zürich

Pavers & flooring | Floor tiles | 380 x 200 x 20 mm + 200 x 200 x 20 mm
© Fehlmann AG
+ Reference overview

Impressive

references

Church St. Markus, Munich | Eberhard Wimmer Architekten BDA, Munich

Pavers & flooring | Floor tiles | 240 x 115 x 20 mnm
© Alexander Bernhard
+ Reference overview

Impressive

references

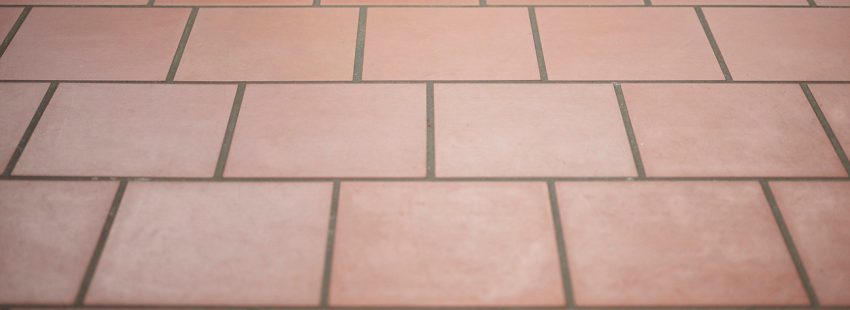

Church St. Ulrich, Unterschleißheim | Hans Maurer, Munich

Pavers & flooring | Floor tiles | 300 x 300 x 25 mnm
© Alexander Bernhard
+ Reference overview

Get a picture of our products on the completed building
and discover impressive references with paving ceramics.

+ All references

Further

information

+ Technical knowledge
+ Planning service

Floor tiles are paving bricks in accordance with DIN EN 1344, but with additional requirements to the previous DIN 18503. With the conformity certificate “Original patio tiles”, compliance with the highest requirements class defined in DIN EN 1344 is assured. Original GIMA patio tiles are resistant to acids, oils and alkalis, they are completely frost-resistant, resistant to gritting salt, high-pressure, abrasive wear, provide secure non-slip footing and are suitable for light, medium and heavy traffic, depending on the structure of the substrate. Obtain more in-depth insights into the product properties of paving clinker, project planning and build executive in the Project Advisory section.

Floor tiles are paving bricks in accordance with DIN EN 1344, but with additional requirements to the previous DIN 18503. With the conformity certificate “Original patio tiles”, compliance with the highest requirements class defined in DIN EN 1344 is assured. Original GIMA patio tiles are resistant to acids, oils and alkalis, they are completely frost-resistant, resistant to gritting salt, high-pressure, abrasive wear, provide secure non-slip footing and are suitable for light, medium and heavy traffic, depending on the structure of the substrate. Obtain more in-depth insights into the product properties of paving clinker, project planning and build executive in the Project Advisory section.

Weiterlesen

You will find more information in our download area.
If you have any questions, please do not hesitate to contact us at any time.
